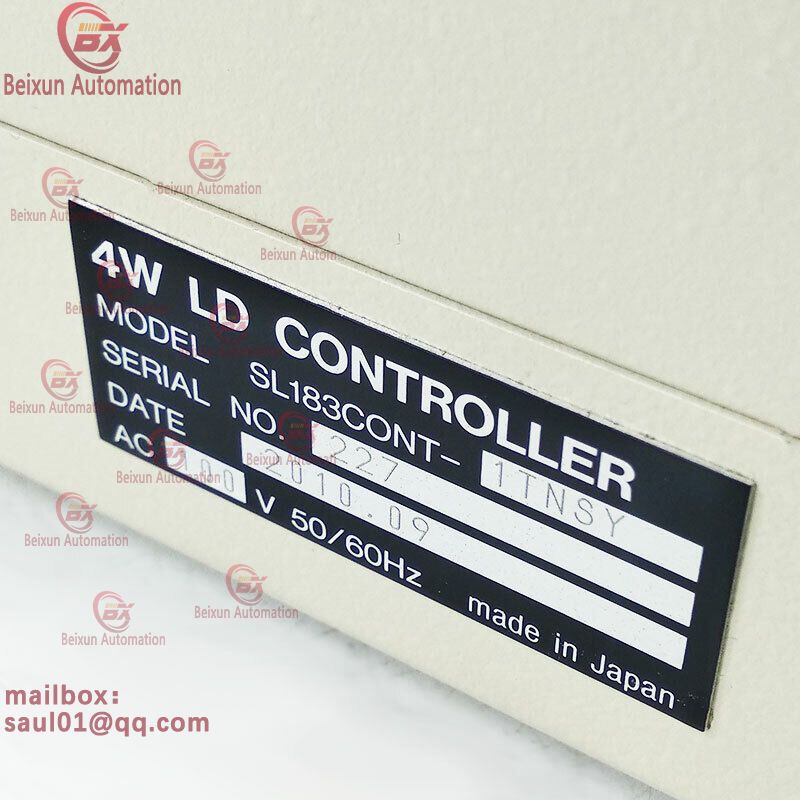

Omron Laser/Controller SL183CT2-LU/SL183CONT-1TNSY

Digital Temperature Controller, 48 x 48 mm, Voltage output (for driving SSR), Auxiliary output: 2, 100 to 240 VAC, Plug-in model, Universal input

Shape DIN48 x 48

Terminal type Plug-in

Input type Thermocouple/Platinum resistance thermometer/Infrared Thermosensor/Analog input

Control output 1 Voltage output (for driving SSR)

Control output 2 None

Number of total auxiliary output 2 point

Power supply voltage 100 to 240 VAC (50/60 Hz)

 Item list of E5CC, E5CC-B, E5CC-U

Ratings / Performance

Dimensions

Connection diagram

Input ranges list

As of March 13, 2024

Ratings

Shape DIN48 x 48

Fixed/Programmable Fixed

Power supply voltage 100 to 240 VAC (50/60 Hz)

Allowable voltage variable range 85 to 110% of the power supply voltage

Power consumption 5.2 VA max. (at 100 to 240 VAC)

Input Number of input points 1 point

Temperature input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII

Platinum resistance thermometer: Pt100, JPt100

Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃

Analog input 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V, 0 to 50 mV

Input impedance Current input: 150 Ω max., voltage input: 1 MΩ min. (Applicable when connecting 1:1 to ES2-HB-N/THB-N.)

Control method ON/OFF or 2-PID control with auto-tuning

Control output Number of total control output 1 point

Control output 1 Voltage output (for driving SSR)

Control output 2 None

Voltage output (for driving SSR) 1 point

12 VDC±20%, Maximum load current: 21 mA, PNP, with short-circuit protection circuit

Auxiliary output Number of total auxiliary output 2 point

Relay output SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations (minimum applicable load: 5 V, 10 mA)

Setting method Digital setting using front panel keys

Indication method 11-segment digital display and individual indicators

Multi SP functions Up to eight set points (SP0 to SP7) can be saved and selected using key operations.

Sampling period 50 ms

Hysteresis Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)

Analog input: 0.01 to 99.99% FS (in units of 0.01% FS)

Proportional band Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)

Derivative time 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)

for cooling Proportional band (P) Temperature input: 0.1 to 999.9 ℃ or °F (in units of 0.1 ℃ or °F)

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)

Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s)

Control period 0.1 s, 0.2 s, 0.5 s, 1 to 99 s (in units of 1 s)

Manual reset value 0.0 to 100.0% (in units of 0.1%)

Insulation resistance 20 MΩ min. (at 500 VDC)

Dielectric strength 3,000 VAC 50/60 Hz 1 min (Between current-carrying terminals of different polarity)

Vibration resistance Destruction: 10 to 55 Hz, 20 m/s2 for 2 h each in X, Y, and Z directions

Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions

Shock resistance Destruction: 300 m/s2, 3 times each in X, Y, and Z directions

Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions

Ambient temperature (Operating) -10 to 55 ℃ (with no freezing or condensation)

For 3-year warranty with standard mounting: -10 to 50 ℃ (with no freezing or condensation)

Ambient temperature (Storage) -25 to 65 ℃ (with no freezing or condensation)

Ambient humidity (Operating) 25 to 85 %

Altitude 2000 m max.

Degree of protection Front panel: IP50, Rear case: IP20, Terminal section: IP00

Memory protection Non-volatile memory (number of writes: 1,000,000)

Case color Black

Terminal type Plug-in

Accessories Mounting adapter

Weight Main Unit: Approx. 100 g

Adapter: Approx. 10 g

Sold separately USB Serial Conversion Cable: E58-CIFQ2

Adapter: Y92F-45/Y92F-49

Waterproof Cover: Y92A-48N

Front-connecting Socket (11 Pins): P2CF-11

Front-connecting Socket with Finger Protection (11 Pins): P2CF-11-E

Back Connecting Socket (11 Pins): P3GA-11

Protective Cover for finger protection: Y92A-48G

Hard Front Cover: Y92A-48H

Soft Front Cover: Y92A-48D

CX-Thermo Support Software: EST2-2C-MV4

Accuracy

Indication accuracy Thermocouple: (±1% of indicated value or ±2 ℃, whichever is greater) ±1 digit max.

Platinum resistance thermometer: (±0.2% of indicated value or ±0.8 ℃, whichever is greater) ±1 digit max.

Analog input: ±0.2% FS ±1 digit max.

(The indication accuracy of K thermocouples in the -200 to 1300 ℃ range, T and N thermocouples at a temperature of -100 ℃ max., and U and L thermocouples at any temperatures is ±2 ℃ ±1 digit max. B thermocouple at a temperature of 400 ℃ max. is not specified. B thermocouples in the 400 to 800 ℃ range is ±3 ℃ max. R and S thermocouples at a temperature of 200 ℃ max. is ±3 ℃ ±1 digit max. C/W thermocouples is (±0.3% PV or ±3 ℃, whichever is greater) ±1 digit max. PL II thermocouples is (±0.3% PV or ±2 ℃, whichever is greater) ±1 digit max.)

Influence of temperature/voltage Thermocouple: R, S, B, C/W, and PLII: (±1% of indicated value or ±10 ℃, whichever is greater) ±1 digit max.

Others: (±1% of indicated value or ±4 ℃, whichever is greater) ±1 digit max.. However K thermocouple at -100 ℃ max.: ±10 ℃ max.

Platinum resistance thermometer: (±1% of indication value or ±2 ℃, whichever is greater) ±1 digit max.

Analog input: ±1% FS ±1 digit max.

Ambient temperature: -10 to 23 to 55 ℃, Voltage range: -15 to 10% of rated voltage

Influence of EMS. Thermocouple: R, S, B, C/W, and PLII: (±1% of indicated value or ±10 ℃, whichever is greater) ±1 digit max.

Others: (±1% of indicated value or ±4 ℃, whichever is greater) ±1 digit max.. However K thermocouple at -100 ℃ max.: ±10 ℃ max.

Platinum resistance thermometer: (±1% of indication value or ±2 ℃, whichever is greater) ±1 digit max.

Analog input: ±1% FS ±1 digit max.

Influence of signal source resistance Thermocouple: 0.1℃/Ω max. (100 Ω max.)
