Schneider 140CPU65160 Modicon Quantum CPU Module

Schneider 140CPU65160 Modicon Quantum CPU Module

1.Warranty time: 1 year

2.Delivery time: 3-5 days

3.Product quality: new or discontinued second-hand

1. We are a global trading company, we have a large stock of spare parts, we also produce energy storage batteries

2. Our main sales products are industrial automation control equipment accessories, such as: controller board, processor module, communication module, input and output module, power module (various circuit boards and cards), touch screen, servo driver, servo motor, sensor, cable......

3. We can not only provide new products, but also supply cold and discontinued spare parts, all the discontinued parts will go through strict testing to ensure the reliability of product performance, so that customers can buy and use at ease

4. For more information, please contact us: Contact: Amy | Email: saul01@qq.com | Tel(WhatsApp/Wechat): +86-15359298283


Schneider 140CPU65160 Modicon Quantum CPU Module



Schneider 140CPU65160 Modicon Quantum CPU Module(图1)

Schneider 140CPU65160 Modicon Quantum CPU Module .The CPUs for the Modicon Quantum automation platform are based on highperformance processors and are compatible with Unity Pro software processor No arithmetic coprocessor Modicon Quantum - 1024 kB - 266 MHz


The Schneider 140CPU65160 is a Unity processor used in the Modicon Quantum automation platform. It has a processing speed of 266MHz and a memory capacity of 1024kB. It is important to note that this processor does not have an arithmetic coprocessor

Schneider 140CPU65160 Modicon Quantum CPU Module


The Modicon Quantum automation platform is used in industrial automation and control systems. The 140CPU65160 processor is a key component of this system and is responsible for executing control logic and communicating with other devices in the system. The processor communicates with other devices through various communication protocols such as Ethernet, Modbus, and CANopen.


To update the firmware of the 140CPU65160 processor, Schneider Electric provides an Ethernet Copro firmware update to Exec v4.0. This release is in response to a vulnerability due to FTP buffer overload. This vulnerability is corrected in the update.

Brand/ManufacturerSchneider/Modicon
Model140CPU65160
Part No
Place of OriginFRANCE
Product NameCPU Module
DescriptionUnity Hot Standby processor with multimode Ethernet
ColourWhite
Max Connections1 Modbus Plus - Local
1 Serial Modbus (RS232/485Modbus/ASCII)
1 Ethernet TCP/IP - local
6 USB-Local
CPU Clock Speed266 MHz
Dimennsions8.9cm x 8.2cm x 14.4cm
Weight0.85kg

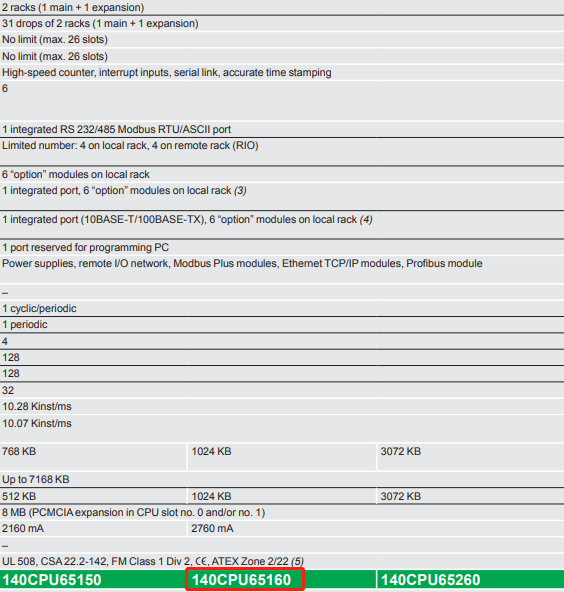

Schneider 140CPU65160 Modicon Quantum CPU Module(图2)


Presentation

The CPUs for the Modicon Quantum automation platform are based on highperformance processors and are compatible with Unity Pro software. Numerous functions are included as standard in Quantum CPUs: b Superior scan times and fast I/O acquisition b Ability to handle interrupts (timed and I/O based) b Handling of Fast task, as well as a Master task b Memory expansion using PCMCIA cards b Multiple communication ports integrated in the CPU b Ease of diagnostics and maintenance via the LCD display block on the front panel of high-end CPUs The CPUs offered have different memory capacities, processing speeds and communication options.


Protected backed up memory

As standard, the CPUs store the application program in a battery-backed internal RAM. This battery is located on the front of the CPU and can be replaced while the CPU is running. A switch enables the application to be made secure against malicious tampering via a remote connection. To protect the application program from inadvertent changes during operation, the CPUs feature a key switch on the front panel to protect the memory. This key switch can also be used to start and stop the CPU. The 140CPU31110 CPU only has a memory-protect slide switch. The high-end 140CPU65150, 140CPU65160, 140CPU65260, 140CPU67060, 140CPU67160, 140CPU67260 and 140CPU67261 CPUs have 2 slots for a PCMCIA card: b An upper slot (no. 0) for a memory expansion card (programs, symbols, constants and/or data storage) b A lower slot (no. 1) for a data storage memory expansion card Besides the large-capacity internal RAM, the high-end 140CPU65860 and 140CPU67861 CPUs have 1 slot for a PCMCIA card: b One slot for a data storage memory expansion card


140CPU53414UC 140CPU65150 140CPU65150C 140CPU65160 140CPU65160C

140CPU65160S 140CPU65260 140CPU65260C 140CPU65860 140CPU65860C

140CPU67060 140CPU67060C 140CPU67160 140CPU67160C 140CPU67160S
