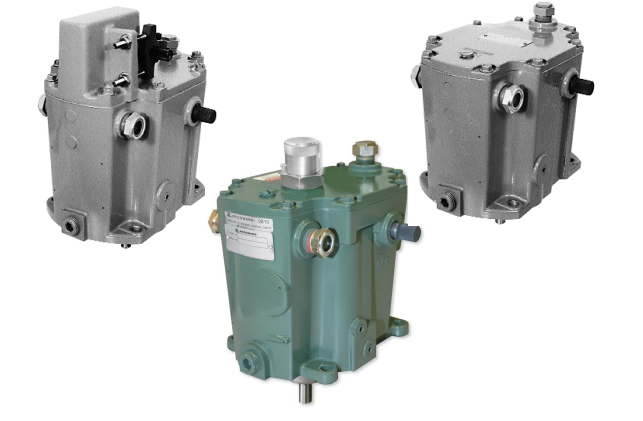

WOODWARD 8516-180 Turbine Gearbox, 8516 Series Speed Governor TG611-13

Key information on the 8516-180 turbine gear reducer, 8516 series speed governors, and TG611-13 products from the U.S.-based Woodward (WOODWARD) brand, covering product overviews, technical specifications, features, application scenarios, and maintenance guidelines, providing a comprehensive reference for the operation, maintenance, and selection of industrial equipment. With over 130 years of experience in the design and manufacture of engine controllers, Woodward’s products are widely used in aviation, industrial engines, turbines, and power generation control. Thanks to their high reliability and precise control performance, Woodward has become the preferred brand in the global industrial sector.

I. WOODWARD 8516-180 Turbine Gearbox

1.1 Product Overview

The WOODWARD 8516-180 Worm Gear Reducer is a precision transmission component specifically designed for industrial power equipment. It belongs to the Woodward Core Transmission Series and is used in conjunction with the 8516 series speed governors and the TG611-13. It is primarily used to regulate power output speed, transmit torque, and achieve precise matching of equipment operating speeds. Featuring a worm gear transmission structure, it combines compact design, smooth operation, and high load-bearing capacity. It meets power transmission requirements across various industrial applications and is particularly suitable for speed control systems in power equipment such as steam turbines and diesel engines, providing reliable transmission support for the stable operation of speed governors.

1.2 Key Technical Specifications

Parameter Name

Parameter Details

Product Model

8516-180

Drive Type

Worm gear drive

Input Power

Compatible with the output power of the 8516 series speed regulators; can be flexibly matched to operating conditions (typical range: 5–20 kW)

Output Torque

Rated output torque up to 1,400 N·m, meeting the power transmission requirements of medium-to-heavy-duty equipment

Transmission Efficiency

85%–98%, low energy loss, enhancing overall equipment operational efficiency

Speed Range

Input shaft speed not exceeding 1,500 rpm; output speed can be precisely adjusted according to the gear ratio, suitable for engine speed control requirements ranging from 300 to 3,600 rpm

Operating Temperature Range

-40°C to 85°C, suitable for harsh industrial environments, capable of stable operation under high and low temperature conditions

Protection Rating

IP20 or higher (higher protection ratings available upon request); must be installed inside an enclosure to prevent dust and debris ingress

Mounting Method

Flange or bolt mounting; compatible with direct installation alongside the 8516 series speed controllers and TG611-13, adapting to existing equipment mounting interfaces for easy installation

1.3 Features

•

Smooth transmission, low noise: Features a high-precision worm gear meshing design, ensuring no significant vibration during transmission. Operating noise is below 75 dB, making it suitable for industrial applications with strict noise requirements and enhancing equipment operating comfort.

•

High load capacity and long service life: The housing is made of high-strength cast aluminum or cast iron, while the worm gear and worm shaft are crafted from wear-resistant alloy materials. Through precision machining and heat treatment, the unit can withstand significant radial and axial loads, effectively resisting wear during operation, extending service life, and reducing maintenance frequency.

•

Strong speed control adaptability: Based on control signals from the 8516 series speed controllers, the output speed can be precisely adjusted to achieve stepless speed regulation of power equipment. This adapts to speed requirements under various operating conditions and works in conjunction with speed control systems to achieve precise control.

•

Compact design with minimal space requirements: Featuring a modular design, the unit is over 30% smaller in volume than parallel-shaft gearboxes of equivalent torque. It is suitable for equipment installation scenarios with limited space, facilitating optimization of the overall equipment layout.

•

Easy maintenance: Excellent sealing performance effectively prevents lubricant leakage; the internal structure is rationally designed for easy disassembly and assembly. Routine maintenance requires only periodic checks of lubricant levels and wear conditions, thereby reducing operational and maintenance costs.
