The GE DS200TCEBG1BAA Protective Termination Expander Board is a crucial component within the Mark V series, designed and manufactured by General Electric. Despite the Mark V series being an obsolete legacy product, having been discontinued years after its initial release due to manufacturer - identified obsolescence, it still holds significance in modern applications. It plays a role in the management and control systems of compatible wind, steam, and gas turbine automated drive assemblies. This series is also notable as one of the last GE Mark product series to utilize the Speedtronic control system technology.

Functionally, this printed circuit board (PCB) serves as a protective termination expander board. It comes equipped with a range of hardware components. There are 3 bayonet connectors, 4 signal transformers, and 1 26 - pin connector. Additionally, it features 4 10 - pin connectors and 3 20 - pin connectors, with the 20 - pin connectors labeled as JKZ, JKX, and JKY. These 20 - pin connectors are linked to signal - carrying ribbon cables, which transmit signals to and from other boards within the drive's interior. The signal transformers on the board are essential for enhancing the compatibility of signals between different devices.

Some of the key connectors on the board and their functions include the JKX/Y/Z TCEA board various signals connector, the JMP TCCB board PT and CT signals connector, the JU PTBA board magnetic pickup and flame detection signals connector, among others. Each of these connectors has a unique factory - printed nomenclature label, and their names are derived from the combination of these labels, their compatibility with Mark V series products, and the types of signals they are designed to transmit.

When handling the ribbon cables connected to the 20 - pin connectors, special care must be taken. Since ribbon cables consist of fragile fine wires, it is crucial to attach a tag or label to them before disconnection to identify the connector they are attached to. This helps prevent misconnection, which could lead to delays in getting the drive back online. When disconnecting, one should hold the ribbon cable connector at the end and gently pull it out while using the other hand to keep the board steady to avoid any movement that could damage the components or the cable itself.

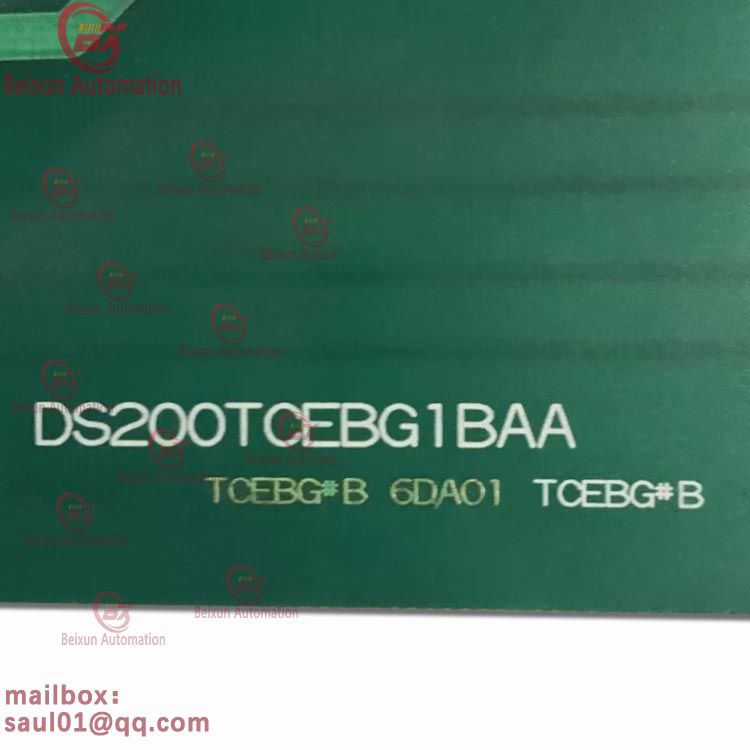

GE DS200TCEBG1BAA Protective Termination Expander Board Mark V
